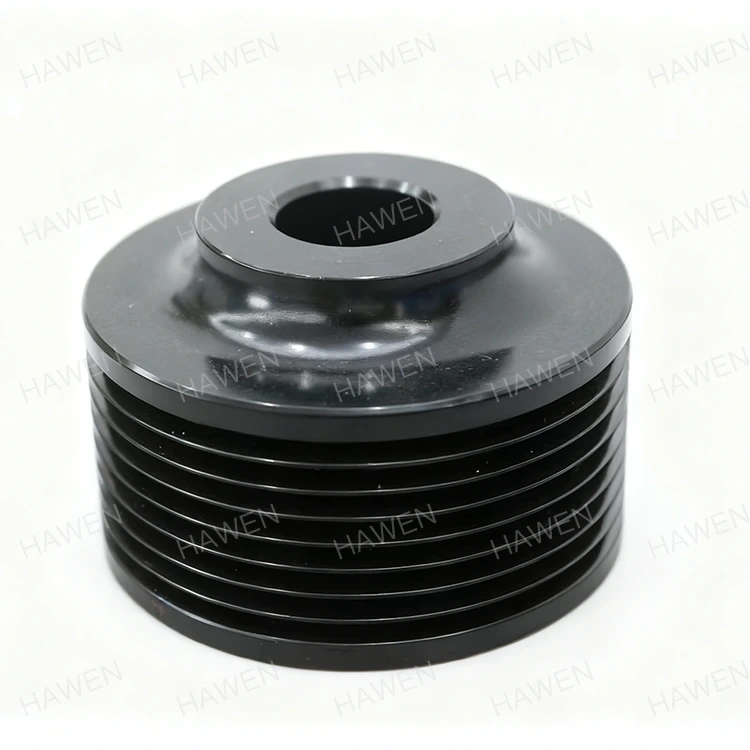

WebType Pulley

Wangun Struktur lan Logika Desain

The WebType Pulley adopts an integrated web structure, connecting the rim and hub through a continuous plate-like web. Compared with spoked structures, this design reduces structural discontinuities, creating a more continuous load-bearing path when the pulley is subjected to radial and torsional loads. It is suitable for transmission systems that require high rigidity and structural stability.

Kekandelan web, rim, lan hub biasane dibentuk utawa dirakit kanthi presisi dhuwur, nyedhiyakake kaku sakabèhé sing luwih dhuwur tinimbang desain pigura sing mbukak. Iki kanthi efektif ngontrol deformasi sajrone operasi kacepetan medium nganti dhuwur.

Dampak Praktis Struktur ing Kinerja

Struktur web tertutup saka Web Type Pulley nyedhiyakake stabilitas dinamis sing luwih apik sajrone operasi. Desain bantalan beban sing terus-terusan nyuda risiko getaran lokal, sing luwih cocog kanggo kinerja bantalan lan sabuk jangka panjang. Ing wektu sing padha, struktur integral mbantu njaga akurasi geometris saka alur sabuk, nyuda kemungkinan nyandhang sabuk sing ora rata.

Sajrone transmisi daya, struktur iki ngidinke fluktuasi torsi kanthi apik, saengga cocog kanggo peralatan industri sing terus-terusan digunakake kanggo wektu sing suwe.

Konfigurasi Material lan Proses Manufaktur

Web Type Pulleys usually undergo dynamic balancing during manufacturing to meet stability requirements at medium-to-high speeds.

Reliability lan Service Life Analysis

Due to the continuous web structure, Web Type Pulleys are less prone to stress concentration under repeated loading. Compared with lightweight structures, they are better suited for high-load, long-duration operating conditions. They demonstrate stable structural durability especially in systems with low start-stop frequency but long single-run times.

Skenario Aplikasi Khas

Web Type Pulleys are commonly used in the following environments:

penggemar industri lan sistem pompa banyu

Unit drive utama alat mesin

Reducer lan output daya ends

Peralatan operasi terus-terusan ing pertambangan lan metalurgi

They are often selected for applications that require stable operation, high rigidity, and long service life.

Pilihan lan Rekomendasi Kustomisasi

When selecting a Web Type Pulley, factors such as belt type, speed range, load level, and shaft connection method should be considered. Customization options include outer diameter, groove type, web thickness, and shaft hole configuration, all of which can be tailored to meet specific application requirements.
